Columns

Empire Fabrication & Machine has a complete machining capabilities, managed by skilled and experienced technicians, dedicated to producing the highest quality Pump Column and Water Works products available anywhere in the industry.

Our machine and fabrication shop builds various well head parts for the vertical turbine industry including Barrels including:

  Type
    • Threaded
    • Flanged Female/Female
    • Flanged Female/Female Reduced
    • Flanged Male/Female
    • Flanged Male/Female w/Discharge
    • Flanged Male FOE X TOE
    • Flanged Male FOE X TOE w/Discharge
    • Submersible
    • Product Lubricated

  Material Type
    • Carbon Steel
    • Stainless Steel

Give us your Column specifications and we will fabricate them to meet your requirements.

Each component is custom made to individual job specifications and quality inspected throughout the manufacturing process.

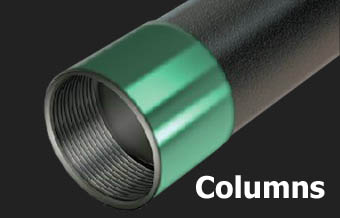

Our typical pump column is made only from prime, certified pipe such as A53-GRB or API-5L GRB. We manufacture our own quality pump column couplings, 2 1/2” – 16”, using only prime seamless coupling stock. Threaded ends (without a coupling) are always well-greased and covered with a snug thread protector.

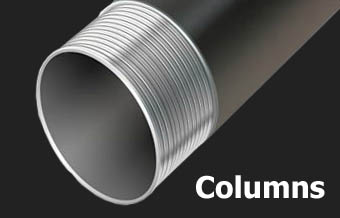

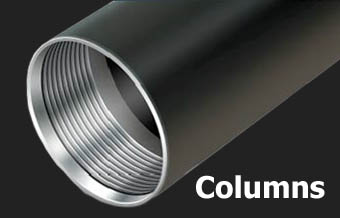

We thread both carbon and stainless steel pipe (up to 20” O.D.), to all major pump manufacturers’ specifications. We cut the precision threads on either our state-of-the-art CNC Threading Machine or our stationary and receding diehead machines. Our pump column, with 8-V butt threads, or 8-V 3/4” taper threads, meets or exceeds the rigid AWWA E101 specification. Flanged column (carbon and stainless) are custom fabricated to your specifications, complete with integral spiders, registered ends, protective coatings and linings as required.


Call us at (800) 527-2064 for a quotation or click Get a Quote and give us your specifications and we'll get you a quotation.
